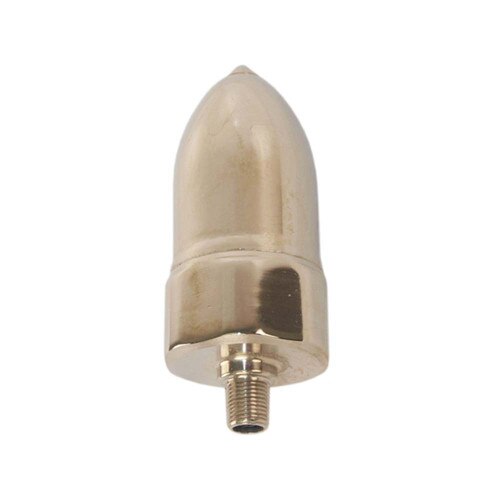

HOFFMAN H41 401455 Steam straight air vent
Product Description
Product Description
HOFFMAN Steam radiator air vent for one pipe steam systems
| MODEL | H41 |
| PRESSURE RATING | Maximum operating pressure 6 psig (0.4 bar) |
| FEATURE | Telescopic siphon tube with angle cut assures drainage |
| FEATURE | Single non-adjustable port |
| FEATURE | Maximum pressure 10 psig (0.7 bar) |
| ITEM TYPE | Steam straight air vent |
| SUPPLY CONNECTIONS | 1/8" NPT straight shank (41) |
| USE | For small steam systems |
| FEATURE | Air Valve (non-vacuum) |
