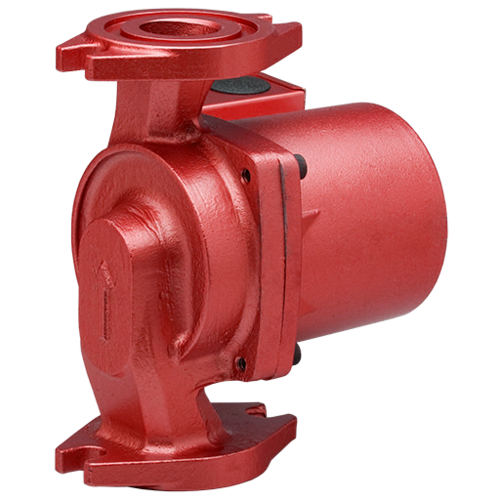

BELL & GOSSETT 103251, Model NRF-22 Wet Rotor Circulator 1/25 HP
Lead Free
Fast Shipping
Easy Returns
Secure Payment
Product Description
Product Description
Residential/Light Commercial In-line Wet Rotor Circulator, Model NRF-22, Cast Iron, 1/25 HP, 3/4", 1", 1-1/4", 1-1/2" Flanged Inlet/Outlet
| MODEL | NBF-22 |
| PRESSURE RATING | 150 PSI |
| FEATURE | Dura-Glide Bearing System |
| FEATURE | High Starting Torque |
| LEAD FREE | Yes |
| WARRANTY | 3-year Warranty |
| CONNECTION SIZE | 3/4", 1", 1-1/4", 1-1/2" |
| SERIES | NBF |
| HEAD | 0 to 15 |
| IMPELLER | Plastic Impeller |
| MAX GPM | 22 |
| MOTOR AMPS | 0.74 |
| MOTOR FEATURE | Oil-Lubricated |
| MOTOR FEATURE | Auto Thermal Protection |
| MOTOR FEATURE | Built-in Overload Protection |
| MOTOR HERTZ | 60 |
| MOTOR HP | 1/25 HP |
| MOTOR PHASE | 1 Phase |
| MOTOR RPM | 2940 |
| MOTOR VOLTAGE | 115V |
| NOT INCLUDED | Flanges |
| MAX TEMP | 230°F |
