T-511 Bronze 2-1/2" Swing Check Valve 105-309 - 150 WSP/300 WOG
Fast Shipping
Easy Returns
Secure Payment
Product Description
Product Description

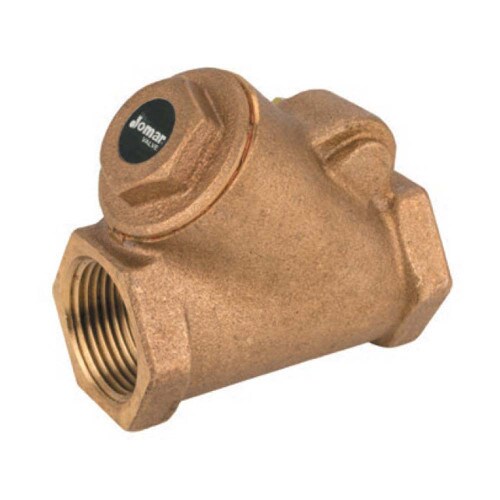

Swing Check Valve, 2-1/2" NPT, Bronze, Threaded, Y-Pattern, 150 WSP/300 WOG

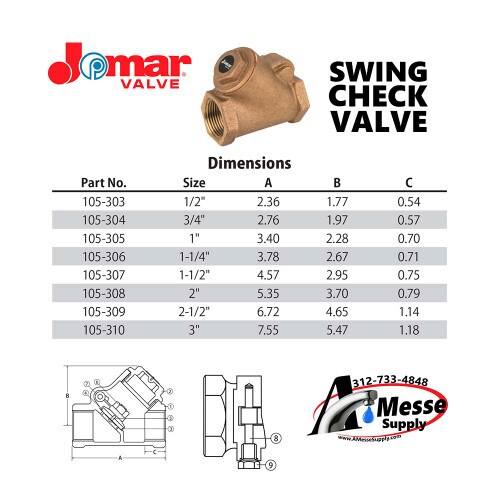

| Series | Part# | MPN | Size | PSI |
|---|---|---|---|---|
| T-511 | CV12 | 105-303 | 1/2" | 150/300 |
| T-511 | CV34 | 105-304 | 3/4" | 150/300 |
| T-511 | CV1 | 105-305 | 1" | 150/300 |
| T-511 | CV114 | 105-306 | 1-1/4" | 150/300 |
| T-511 | CV112 | 105-307 | 1-1/2" | 150/300 |
| T-511 | CV2 | 105-308 | 2" | 150/300 |
| T-511 | CV212 | 105-309 | 2-1/2" | 150/300 |
| T-511 | CV3 | 105-310 | 3" | 150/300 |

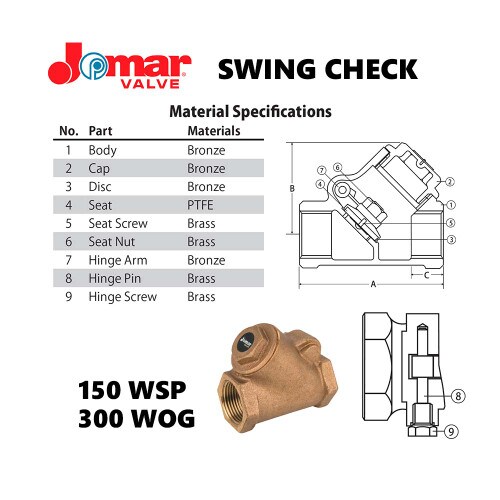

- Y-pattern
- 85-5-5-5 bronze
- Installed horizontal and vertical position
- Class 150
- 300 WOG
- Threaded
